Cisco Meraki Sector Antenna
MA-ANT-27
Meraki Dual-Band Sector Antenna · 2.4 / 5 GHz · 9 / 12 dBi · N-type Connectors
Overview
MA-ANT-27

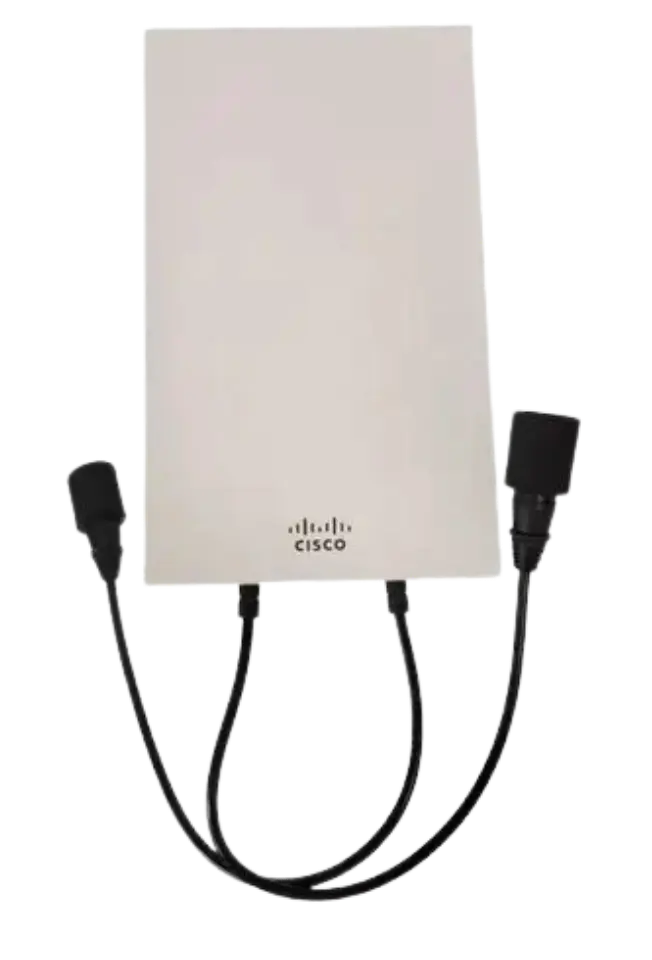

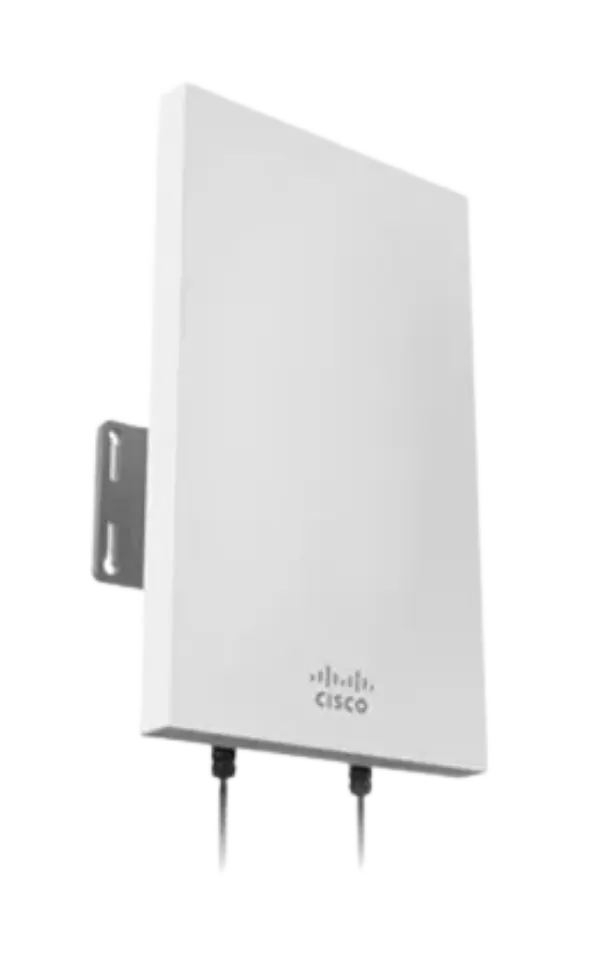

The MA-ANT-27 is a Cisco Meraki dual band sector antenna covering both 2.4 GHz and 5 GHz, with 9 dBi and 12 dBi gain respectively. It is designed for Meraki access points with N-type connectors and is ideal for providing client coverage over focused areas or creating backhaul links. Two N-type cables and full mounting hardware are included, and the UV resistant housing mounts to walls, poles, or directly on the access point for indoor and outdoor use.
100% Genuine
Original, factory-verified
Warranty Backed
Manufacturer warranty included
Fast Delivery
Quick dispatch across the UAE
Technical Specifications
| Model | MA-ANT-27 |
| Antenna Type | Dual band sector, MIMO |
| Frequency Range | 2.400 to 2.500 GHz and 5.150 to 5.875 GHz |
| Gain | 9 dBi (2.4 GHz) / 12 dBi (5 GHz) |
| Polarization | Linear, vertical / horizontal |
| Horizontal Beamwidth | 86 degrees / 65 degrees |
| Vertical Beamwidth | 34 degrees / 18 degrees |
| Connectors | 2 x N-type, with 12 inch (30 cm) cables included |
| Compatible Access Points | Meraki APs with N-type connectors, certified for MR74 and MR84 |
| Mounting | Wall, pole, or directly on the AP, hardware included |
| Dimensions | 230 x 140 x 48 mm (9.1 x 5.5 x 1.9 in) |
| Weight | 630 g (1.4 lbs) |
| Material | UV resistant plastic |
| Operating Temperature | -40 to 70 degrees C |
| Humidity | 5 to 95 percent, non condensing |
| Manufacturer | Cisco Meraki |
Need the MA-ANT-27 for a warehouse, stadium, campus, or outdoor wireless deployment? Our team can confirm stock, access point compatibility, and delivery to your Dubai location within the same day.
Bulk and reseller pricing available. Email sales@fsiae.com for a same day response.
Why Choose FSI as Your Cisco Supplier in Dubai
FSI Technology is a trusted Cisco supplier in Dubai, supplying genuine Cisco products including Cisco Meraki wireless products and Catalyst switches to businesses across the UAE. As an authorized Cisco supplier in Dubai, we stock Cisco switches, routers, and wireless accessories such as antennas, backed by factory verified stock and enterprise grade warranty and after-sales support.
Key Features
- Dual band 2.4 GHz and 5 GHz MIMO sector antenna with 9 / 12 dBi gain
- Focused 65 to 86 degree horizontal coverage for targeted client areas or backhaul links
- Two 12 inch N-type cables included for connecting to the access point
- Wall, pole, or direct AP mounting with all mounting hardware included
- UV resistant housing rated from minus 40 to 70 degrees Celsius for indoor and outdoor use
- Certified for use with the Meraki MR74 and MR84 access points
Platform Highlights
Choose the MA-ANT-27 when you need directed coverage instead of a wide omnidirectional pattern.
Dual Band
Covers both 2.4 GHz and 5 GHz with a single antenna for flexible client and backhaul designs.
Focused Sector Pattern
Concentrates signal into a defined area, ideal for aisles, stands, and long outdoor spaces.
Weather Ready
UV resistant plastic housing with a wide temperature range for outdoor installations.
Where This Antenna Fits
Businesses in Dubai and across the UAE use the MA-ANT-27 to extend Meraki wireless coverage into focused areas such as warehouse aisles, loading yards, sports venues, and campus walkways, or to build point to point backhaul links between buildings. Pairing a sector antenna with a compatible Meraki access point lets you aim coverage where users actually are instead of broadcasting in every direction.
Frequently Asked Questions
Where can I buy a genuine Cisco Meraki antenna in Dubai?
FSI Information Technology is a certified Cisco supplier in Dubai, stocking genuine Cisco and Cisco Meraki products with fast delivery across the UAE.
Which Meraki access points work with the MA-ANT-27?
The MA-ANT-27 is designed for Meraki access points that have N-type connectors, and it is certified for use with the Meraki MR74 and MR84.
What is the difference between the MA-ANT-27 and an omnidirectional antenna?
The MA-ANT-27 is a sector antenna that focuses its signal into a defined area, with 65 to 86 degree horizontal coverage, which suits focused client coverage or point to point backhaul links. An omnidirectional antenna spreads signal in all directions around the access point.
Can the MA-ANT-27 be used outdoors?
Yes, the MA-ANT-27 is built from UV resistant plastic, operates from minus 40 to 70 degrees Celsius, and can be mounted on a wall or pole, so it suits both indoor and outdoor installations.
